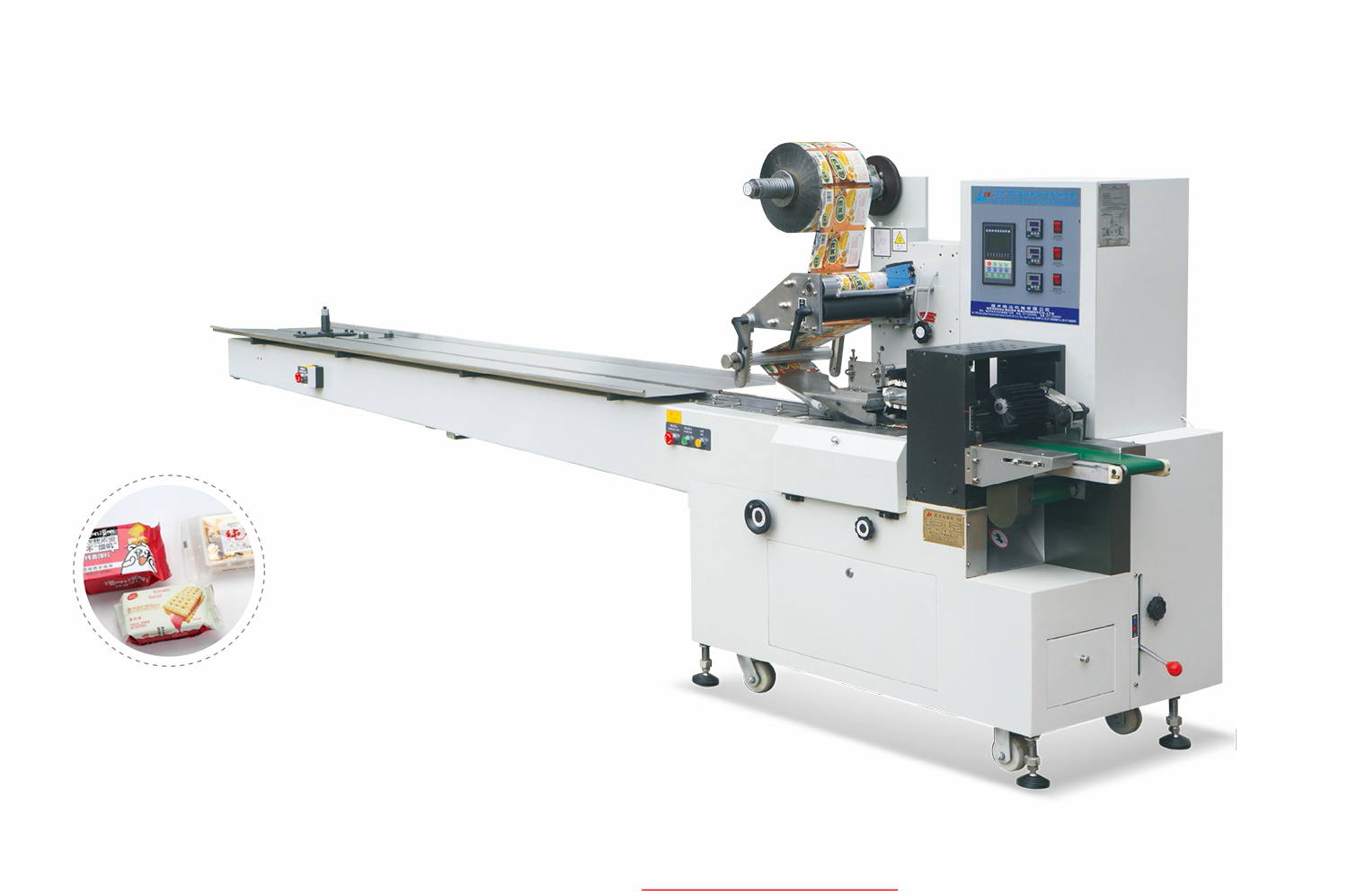

DXD-300/420 Multi-function Pillow Type Packaging Machine
USE用途
It is used for packing products as biscuit，chocolate，cake，card，products for daily use etc.
用于包裝餅干、巧克力、蛋糕、卡片日用品等
MAIN TECHNICAL PARAMETERS主要技術參數
DXD-300
Max.Production Capacity Packing shape | 上限生產能力 包裝物形 | 30-140 (單刀Single Cutter) | 80-290（雙刀Double Cutters） | 80-300（三刀Three Cutters） | |||||
| 方形、長方形、圓形、橢圓形、片狀等。Square，rectangle，circular，ellipse and flake etc. | |||||||||
Packing Range / Width Height | 包裝范圍/ 袋長 寬度 高度 | 170-400mm 35-100mm <60mm | 80-200mm 35-100mm <40mm | 60-130mm 35-100mm <30mm | |||||
Max.Dia.of Film | 包裝膜上限直徑 包裝膜上限寬度 | 350mm 300mm | 350mm 300mm | 350mm 300mm | |||||
Gross Power Power Supply | 總功率 電源 | 3kW 220V 50Hz | 3kW 220V 50Hz | 3kW 220V 50Hz | |||||
Gross Weight Overall Dimension | 總重量 外形尺寸 | 900kg 4300×850×1550mm | 900kg 4300×850×1550mm | 900kg 4300×850×1550mm | |||||
Note: We can design and manufacture according to customer's special needs. 注：用戶如有特殊規格，本公司可另行設計制造.
DXD-420
Max.Production Capacity Packing shape | 上限生產能力 包裝物形 | 35-130 (單刀Single Cutter) | 60-260（雙刀Double Cutters） | ||||
| 方形、長方形、圓形、橢圓形、片狀等。Square，rectangle，circular，ellipse and flake etc. | |||||||
Packing Range / Width Height | 包裝范圍/ 袋長 寬度 高度 | 190-450mm 40-140mm <80mm | 90-270mm 40-140mm <60mm | ||||
Gross Power Power Supply | 總功率 電源 | 3kW 220V 50Hz | 3kW 220V 50Hz | ||||
Gross Weight Overall Dimension | 總重量 外形尺寸 | 950kg 4550×1000×1550mm | 950kg 4550×1000×1550mm | ||||
Note: We can design and manufacture according to customer's special needs. 注：用戶如有特殊規格，本公司可另行設計制造.
